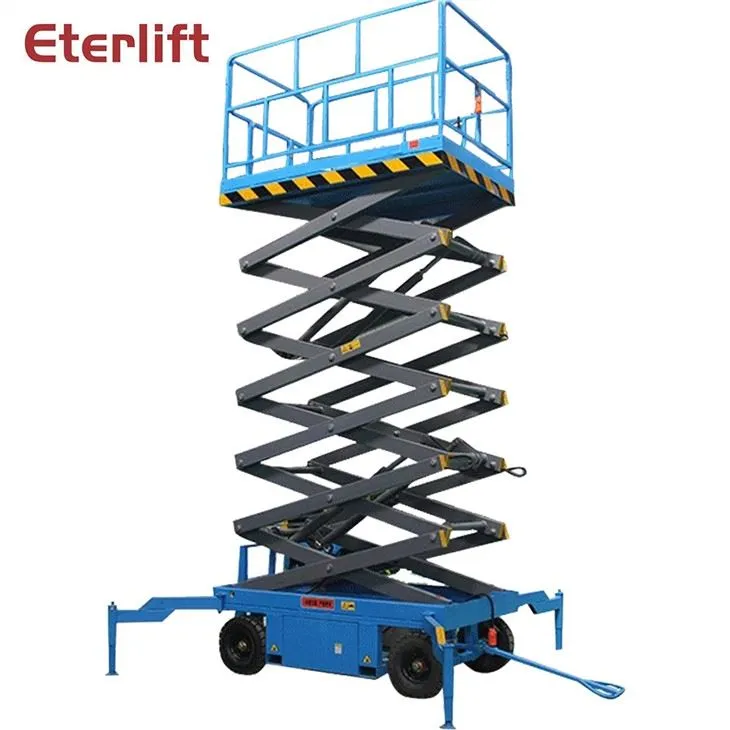

Elektr gidravlik qaychi ko'tarish platformasi turli xil ranglarni, batareyaning quvvatini va elektr ta'minotidagi kuchlanishni sozlashni qo'llab-quvvatlaydi, bu oddiy ishlash, katta ko'tarish og'irligi va oson harakat qilishning afzalliklariga ega. uskunalar tanlanishi mumkin bo'lgan balandligi 4-20m. Yuk 500 kg dan yuqori. Qingdao EterLiftMachinery Co., Ltd kompaniyasining elektr gidravlik qaychi ko'tarish platformasi ishlab chiqarish zavodi sifatida 20 yildan ortiq' uskunalarni loyihalash tajribasi. Mahsulotlari Evropa, Shimoliy Amerika va boshqa ko'plab mamlakatlar va mintaqalarga eksport qilindi.
Texnik xususiyatlari:
Model | Maks.platformaBalandligi(m) | Yuk hajmi | Jadval hajmi（mm) | Umumiy hajmi (mm) | Mil. (Kg) |
500 kg yuk hajmi | |||||
ESL0504 | 4 | 500 | 2100*830 | 2250*950*1100 | 800 |
ESL0506 | 6 | 500 | 2100*830 | 2250*950*1200 | 880 |
ESL0507 | 7 | 500 | 2100*830 | 2250*950*1280 | 970 |
ESL0508 | 8 | 500 | 2100*930 | 2250*1060*1380 | 1050 |
ESL0509 | 9 | 500 | 2100*930 | 2250*1060*1500 | 1165 |
ESL0510 | 10 | 500 | 2100*1230 | 2250*1350*1530 | 1360 |
ESL0511 | 11 | 500 | 2100*1230 | 2250*1350*1650 | 1400 |
ESL0512 | 12 | 500 | 2550*1530 | 2796*1670*1750 | 2260 |
ESL0514 | 14 | 500 | 2812*1530 | 3067*1730*1810 | 2400 |
ESL0516 | 16 | 500 | 2812*1600 | 3067*1800*2080 | 3500 |
ESL0518 | 18 | 500 | 3070*1600 | 3321*1810*2080 | 3900 |
1000 kg yuk hajmi | |||||
ESL1004 | 4 | 1000 | 2100*1200 | 2250*1350*1180 | 1250 |
ESL1006 | 6 | 1000 | 2100*1200 | 2200*1350*1300 | 1400 |
ESL1008 | 8 | 1000 | 2100*1200 | 2200*1350*1420 | 1585 |
ESL1010 | 10 | 1000 | 2100*1200 | 2200*1350*1530 | 1700 |
ESL1012 | 12 | 1000 | 2550*1530 | 2796*1670*1750 | 2560 |
ESL1014 | 14 | 1000 | 2812*1530 | 3067*1750*1810 | 2765 |
1500 kg yuk hajmi | |||||
ESL1506 | 6 | 1500 | 2100*1530 | 2250*1750*1530 | 1780 |
ESL1508 | 8 | 1500 | 2100*1530 | 2250*1750*1690 | 2070 |
ESL1510 | 10 | 1500 | 2100*1530 | 2250*1750*1850 | 2250 |
ESL1512 | 12 | 1500 | 2550*1530 | 2250*1762*1850 | 2900 |
ESL1514 | 14 | 1500 | 2816*1600 | 3045*1852*1960 | 3400 |
2000 kg yuk hajmi | |||||
ESL2006 | 6 | 2000 | 2100*1530 | 2250*1750*1530 | 1780 |
ESL2008 | 8 | 2000 | 2100*1530 | 2250*1750*1690 | 2070 |
ESL2010 | 10 | 2000 | 2100*1530 | 2250*1750*1850 | 2250 |
ESL2012 | 12 | 2000 | 2550*1600 | 2796*1852*1954 | 3200 |
ESL2014 | 14 | 2000 | 2816*1600 | 3067*1852*2230 | 3900 |
Mahsulot tafsilotlari:
2 dona Boshqarish paneli, biri tanada, ikkinchisi platformada
Yuqori aşınmaya bardoshli kauchuk shinalar
Sozlanishi oyoqlari, turli xil ish sharoitlariga mos keladi
Uzoq ish vaqti bo'lgan katta quvvatli akkumulyator
Barqaror gidravlik tizim
Model | Maks.platformaBalandligi(m) | Yuk hajmi | Jadval hajmi（mm) | Umumiy hajmi (mm) | Mil. (Kg) |
500 kg yuk hajmi | |||||
ESL0504 | 4 | 500 | 2100*830 | 2250*950*1100 | 800 |
ESL0506 | 6 | 500 | 2100*830 | 2250*950*1200 | 880 |
ESL0507 | 7 | 500 | 2100*830 | 2250*950*1280 | 970 |
ESL0508 | 8 | 500 | 2100*930 | 2250*1060*1380 | 1050 |
ESL0509 | 9 | 500 | 2100*930 | 2250*1060*1500 | 1165 |
ESL0510 | 10 | 500 | 2100*1230 | 2250*1350*1530 | 1360 |
ESL0511 | 11 | 500 | 2100*1230 | 2250*1350*1650 | 1400 |
ESL0512 | 12 | 500 | 2550*1530 | 2796*1670*1750 | 2260 |
ESL0514 | 14 | 500 | 2812*1530 | 3067*1730*1810 | 2400 |
ESL0516 | 16 | 500 | 2812*1600 | 3067*1800*2080 | 3500 |
ESL0518 | 18 | 500 | 3070*1600 | 3321*1810*2080 | 3900 |
1000 kg yuk hajmi | |||||
ESL1004 | 4 | 1000 | 2100*1200 | 2250*1350*1180 | 1250 |
ESL1006 | 6 | 1000 | 2100*1200 | 2200*1350*1300 | 1400 |
ESL1008 | 8 | 1000 | 2100*1200 | 2200*1350*1420 | 1585 |
ESL1010 | 10 | 1000 | 2100*1200 | 2200*1350*1530 | 1700 |
ESL1012 | 12 | 1000 | 2550*1530 | 2796*1670*1750 | 2560 |
ESL1014 | 14 | 1000 | 2812*1530 | 3067*1750*1810 | 2765 |
1500 kg yuk hajmi | |||||
ESL1506 | 6 | 1500 | 2100*1530 | 2250*1750*1530 | 1780 |
ESL1508 | 8 | 1500 | 2100*1530 | 2250*1750*1690 | 2070 |
ESL1510 | 10 | 1500 | 2100*1530 | 2250*1750*1850 | 2250 |
ESL1512 | 12 | 1500 | 2550*1530 | 2250*1762*1850 | 2900 |
ESL1514 | 14 | 1500 | 2816*1600 | 3045*1852*1960 | 3400 |
2000 kg yuk hajmi | |||||
ESL2006 | 6 | 2000 | 2100*1530 | 2250*1750*1530 | 1780 |
ESL2008 | 8 | 2000 | 2100*1530 | 2250*1750*1690 | 2070 |
ESL2010 | 10 | 2000 | 2100*1530 | 2250*1750*1850 | 2250 |
ESL2012 | 12 | 2000 | 2550*1600 | 2796*1852*1954 | 3200 |
ESL2014 | 14 | 2000 | 2816*1600 | 3067*1852*2230 | 3900 |
